Gas
Sectionalizer
:
SF6 Gas Insulated
Sectionalizer |
¡¡ |
¡¡
|
 Application and
Characteristics
-

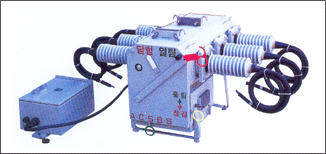

The SF6 Gas Insulated
Sectionalizer is designed to use in conjunction with recloser
or circuit breaker to automatically isolate faulted of
distribution line.
-
The switch can be open
after 1,2 or 3 counts.
(Opening time is not excess 0.2 second)
-
The switch offers the
following features :
Maintenance free / Light weight and easy installation / Safety
features / Inrush current restraint.
|
|
|
Type |
JK-GACBS |
|
Rated voltage (kV) |
15 |
25.8 |
36 |
|
Rated current (A) |
400/630 |
|
Rated frequency (Hz) |
50/60 |
|
Rated power frequency withstand voltage (kV) |
40 |
60 |
70 |
|
Rated lightning impulse withstand voltage (kV) |
110 |
150 |
170 |
|
Rated short-time current (kA, RMS) |
10/12.5/20 |
|
Rated short circuit making current (kA,peak) |
25/31.5/50 |
|
Minimum operation current (A) |
Phase |
16,24,40,56,80,112,160,224,256,300,448,640 bypass |
|
Ground |
3,5,7,18,28,40,56m80m112m160m224m320 Block |
|
Inrush restraint miltiplier |
1,2,4,6,8,Block |
|
Mechanical endurance (times) |
5000 |
|
Full load operation (times) |
200/400 CO |
|
Rated control voltage (DC V) |
12 |
|
Rated gas pressure (kgf / §². G) |
1.5 |
|
Weight (kg) |
180 |
200 |
220 |
|
Applied standards |
ANSI C 37.63/IEC 60694/KEPCO std. |
¡¡ |
