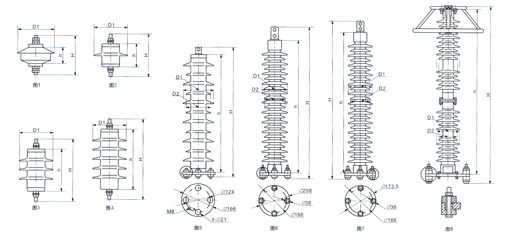

Arrester :   Appearance size and weight of polymer housing

Code	Model of lightning arrester	Product height (mm)		Skirt diameter large skirt D1/small skirt D2 mm	Central diameter of installation hole/diameter of installation home mm	Reference weight of product (kg)	Creepage distance mm	Fig.No
		H	h
1	YH1.5W-0.28~0.5	80	35	57	6	0.12	46	1
2	YH5WS-5/15	148	80	97	10	0.4	95	2
3	YH5WZ-5/13.5	150	85	106	10	0.6	105	2
4	YH5WR-5/13.5	152	90	115	12	0.9	110	2
5	YH2.5WD-4/9.5	152	90	115	12	0.9	110	2
6	YH5WS-10/30	220	144	97	10	0.97	227	3
7	YH5WZ-10/27	215	140	106	10	1.27	232	3
8	YH5WR-10/27	230	150	115	12	1.85	245	3
9	YH2.5WD-8/18.7	230	150	115	12	1.85	245	3
10	YH5WS-17.50	270	196	97	10	1.3	370	4
11	YH5WZ-17/45	270	196	106	10	1.8	386	4
12	YH5WR-17/45	270	196	115	12	2.4	394	4
13	YH2.5WD-13~17	270	196	115	12	2.4	394	4
14	YH5W-42~54	650	590	150/120	124/4-M12	11	1090	5
15	YH5W-96~108	1255	1125	216/186	276/4-M12	50	3057	7
16	YH10W-96~108	1255	1125	216/186	276/4-M12	50	3057	7
17	YH10W-192~216	2380	2245	216/186	276/4-M12	100	6115	8
18	YH1.5W-60~72	1025	920	170/170	276/4-M12	21	2035	6
19	YH1.5W-96~144	1255	1050	216/176	276/4-M12	50	3057	7
