Insulators :

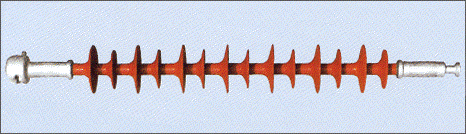

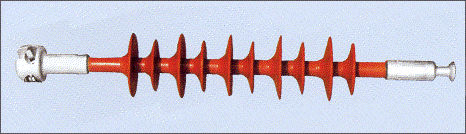

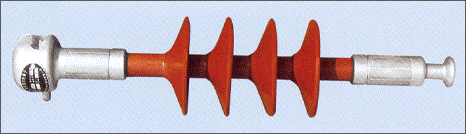

  Long rod suspension composite insulators (chart 1)






No Type Code name Voltage rating kV mech-anical

ten-
sile

load rating kN
Ball & socket size Se-
ction
 height

mm
Mini-mum

arc-
ing
 dis-rance

mm
Mini-mum
 no-minal

cree-page

dis-tance
mm
ligh-
ting
 im-pulse

with-stand voltage Kv (virtual value)
Swit-ching
 im-
pulse with-stand voltage
Kv (virtual value)
Imin
wet

 power freq-uency with-stand voltage
Kv
(virtual value)
Kg
1 FXBW4-10/100-1 111201 10 100 16R 43015 200 500 48 1.9
2 FXBW4-10/100-2 111202 10 100 16R 43015 200 450 4895 1.8
3 FXBW2-35/100-3 112203 35 100 16R 66015 450 880 230 95 2.3
4 FXBW4-35/100-4 112204 35 100 16R 66015 450 1015 230 185 2.4
5 FXBW4-66/100-1 113201 66 100 16R 94015 700 1900 410 185 3.2
6 FXBW2-66/100-2 113202 66 100 16R 91015 700 1850 410 185 3.1
7 FXBW4-66/100-6 113206 66 100 16R 101015 730 2200 410 230 3.7
8 FXBW4-110/70-5 114105 110 70 16R 144030 1150 3150 550 230 4.8
9 FXBW4-110/100-5 114205 110 100 16R 144030 1150 3150 550 230 4.8
10 FXBW2-110/100-6 114206 110 100 16R 136030 1050 2800 550 395 4.5
11 FXBW4-220/100-4 115204 220 100 16R 22430 1950 6300 1000 395 10
12 FXBW4-220/100-5 115205 220 100 16R 235030 2050 6300 1000 395 10
13 FXBW2-220/100-7 115207 220 100 16R 219030 1900 5600 1000 395 9.3
14 FXBW3-220/100-9 115216 220 100 16R 219030 1900 6300 1000 395 10.3
15 FXBW4-220/120-4 115304 220 120 16R 224030 1950 6300 1000 395 12.5
16 FXBW4-220/120-5 115305 220 120 16R 235030 2050 6300 1000 395 12.6
17 FXBW4-220/160-5 115405 220 160 20R 224030 1950 6300 1000 395 13.6
18 FXBW4-220/210-2 115502 220 210 20R 235030 2000 6300 1000 395 13.6
19 FXBW2-330/100-1 116201 330 100 16R 305040 2700 8500 1425 950 570 15.6
20 FXBW1-330/100-2 116202 330 100 16R 293040 2600 7260 1425 950 570 13.8
