Insulators :

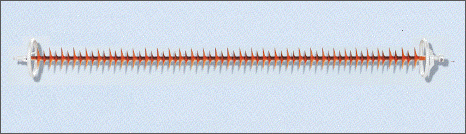

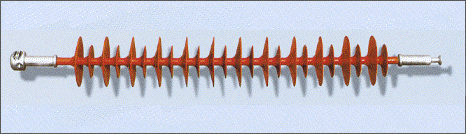

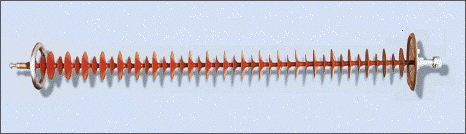

Long rod suspension composite insulators (chart 2)

No	Type	Code name	Voltage rating KV	mech-anical ten- sile load rating kN	Ball & socket size	Se- ction height mm	Mini-mum arc- ing dis-rance mm	Mini-mum no-minal cree-page dis-tance mm	ligh- ting im-pulse with-stand voltage Kv (virtual value) ≥	Swit-ching im- pulse with-stand voltage Kv (virtual value) ≥	Imin wet power freq-uency with-stand voltage Kv (virtual value) ≥	Kg
21	FXBW3-330/100-3	116203	330	100	16R	2930±40	2600	9075	1425	950	570	16.2
22	FXBW2-330/100-4	116204	330	100	16R	2990±40	2650	7260	1425	950	570	13.8
23	FXBW4-330/100-5	116205	330	100	16R	2990±40	2650	9075	1425	950	570	16.3
24	FXBW2-330/210-1	116501	330	210	20R	3050±40	2600	8500	1425	950	570	19.8
25	FXBW1-330/210-2	116502	330	210	20R	2930±40	2500	7260	1425	950	570	17.9
26	FXBW3-330/210-3	116503	330	210	20R	2930±40	2500	9075	1425	950	570	20.9
27	FXBW2-330/210-4	116504	330	210	20R	2990±40	2550	7260	1425	950	570	17.7
28	FXBW1-500/100-1	117201	500	100	16R	4050±50	3650	11000	2050	1240	740	22.6
29	FXBW4-500/100-3	117203	500	100	16R	4450±50	4050	13750	2250	1240	740	27
30	FXBW1-500/100-5	117205	500	100	16R	4360±50	4000	12000	2100	1240	740	23.7
31	FXBW1-500/210-1	117501	500	210	20R	4050±50	3600	11000	2050	1240	740	23.7
32	FXBW1-500/210-2	117502	500	210	20R	4340±50	3900	12000	2100	1240	740	25.2
33	FXBW4-500/210-3	117503	500	210	20R	4450±50	4000	13750	2250	1240	740	28
34	FXBW1-500/210-4	117504	500	210	20R	4360±50	3900	12000	2100	1240	740	25.3
35	FXBW4-500/300-1	117601	500	300	24R	5460±50	4900	1400	2250	1240	740	35.5
36	FXBW4-750/210-1	118501	750	210	24R	6550±50	6000	21600	2700	1800	1125	55
37	FXBW4-750/300-1	118601	750	300	24R	6550±50	6000	21600	2700	1800	1125	55
38	FXBZW6-±500/160-1	127401	±500	160	20R	5440±50	5000	18000	+2550	+1550	+600	35
39	FXBZW6-±500/160-2	127402	±500	160	20R	6290±50	5850	21060	+2700	+1675	+650	40
40	FXBZW6-±500/160-3	127403	±500	160	20R	5400±50	5000	18000	+2550	+1550	+600	35
40	FXBZW6-±500/160-4	127404	±500	160	20R	6200±50	5800	21060	+2700	+1675	+650	40
42	FXBZW6-±500/210-1	127501	±500	210	20R	5440±50	5000	18000	+2550	+1550	+600	35
43	FXBZW6-±500/210-2	127502	±500	210	20R	6290±50	5850	21060	+2700	+1675	+650	40
